TTU-3DX-L. The Battery-Operated TTU for Portability and When Cutting a Hole Isn’t Practical.

The TTU-3DX-L Series is a simple way to provide clear and high quality communication through glass or any barriers of any kind. This battery-operated unit allows for these units to be moved to various locations. It’s perfect when portability is a concern.

TTU-3DX-L Series is the best choice when it’s impractical to cut a hole through an isolation barrier. The prism shaped units are mounted on a countertop on both sides of the barrier and allow hands-free, clear communication.

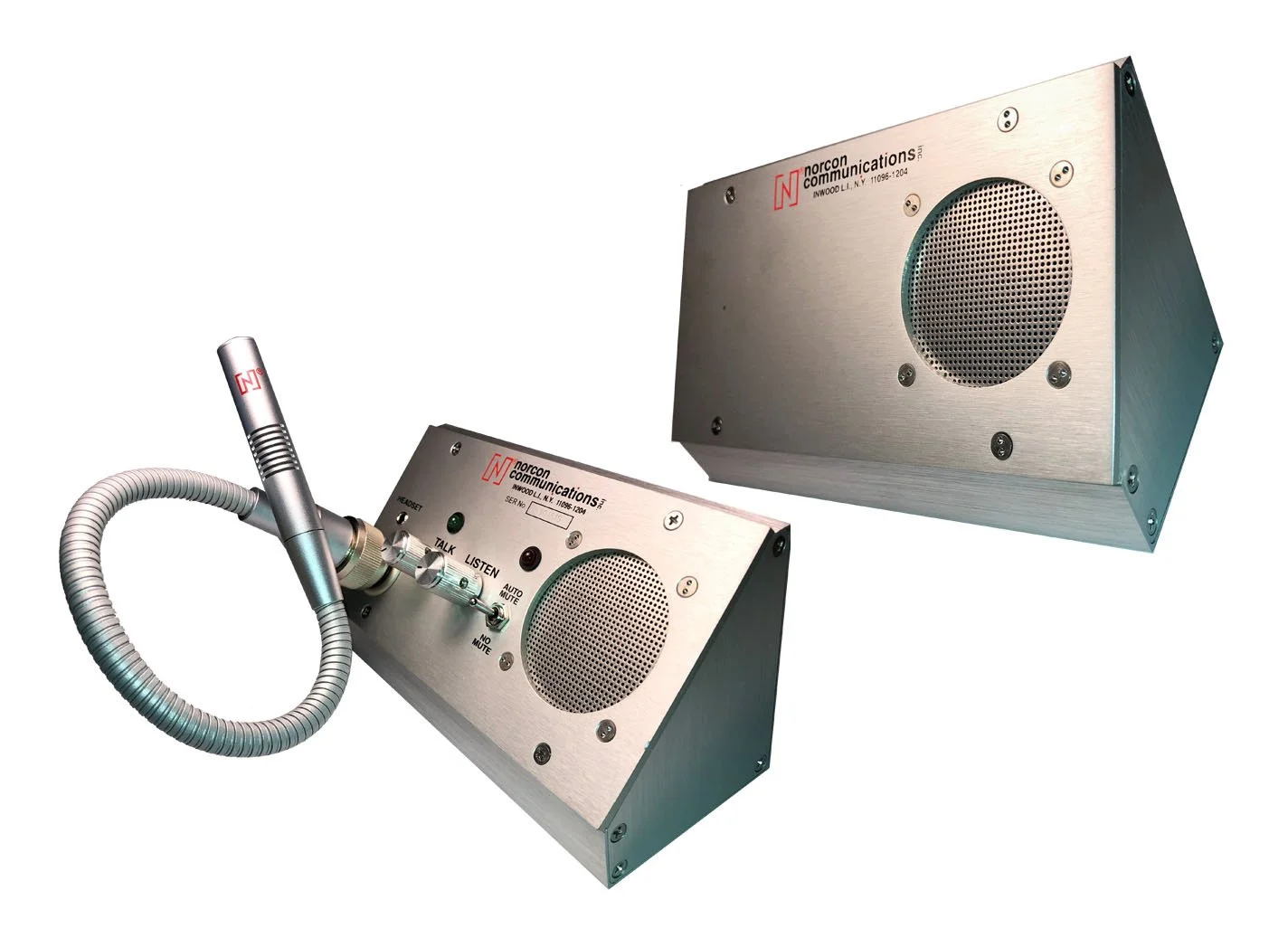

The TTU-3DX-L is the most popular countertop voice communication system for security and isolation booths (shown with standard 18” gooseneck microphone)

Installation

The TTU-3DX-L comes ready to operate. The prism units are quickly and easily mounted on the counter-top on opposite sides of the barrier. The unit can be positioned against the barrier or any location convenient for the user. It comes with a power supply with 100-240 VAC input and 15 VDC, 1A output.

TTU-3DX-L Options

Wireless Option

This unit is integrated with a wireless antenna to communicate with our customized wireless headset.

Part Number: TTU-3DX-L-W

TTU-3DX-L-W wireless option.

Norcon customized wireless headset (TTU-WHS-D) available separately.

Push To Talk Option

Employees need to push this switch to activate the internal microphone, ensuring that only the intended conversation is heard outside.

Part Number: TTU-3DX-L-PTT

Noise Cancellation Option

Automatically lowers outside ambient noise. This option is especially useful in noisy areas like heavily trafficked streets, crowded movie theaters, and gas stations. Customers can have clear communication even with a passing truck in the background. This option is only available in our AC-powered units. The TTU-NC option includes:

  • ADSP-BF592 DSP processor

  • 16-bit DAC and 16-bit ADC

  • DSDA processor + noise reduction algorithm that reduces noise by 26–30 dB

Part Number: TTU-3DX-L-NC

Monitoring and Recording Option

Provides a line level audio signal of either “Talk”, “Listen”, or both channels for analog audio recording or monitoring. Please specify when ordering.

Part Number: TTU-3DX-L-MRA

Americans with Disabilities Act (ADA) Option Compliant Option

To comply with the American for Disabilities Act (ADA), this option allows the TTU-3X to communicate with a hearing aid. It includes:

  • Monitoring and recording option, providing a line out from the TTU

  • Induction loop amplifier with power supply

    • Loop amplifier must be powered with 110v/220v adapter

  • Loop driver antenna to be used around the TTU-3DX or placed under the counter

  • Cables and installation drawings

Part Number: TTU-3DX-L-ADA

ADA Option Components

How the ADA option works for the TTU-3

A Note on Part Numbers

The TTU-3DX-L has a number of options. Adding options to a unit modifies the part number. For example, the standard gooseneck microphone length is 18” but we offer a 10” and 24” option. A TTU-3DX-L with a 10” microphone would be part number "TTU-3DX-L-10.” The options above can be combined to meet your needs. For example a TTU-3DX-L with Wireless, Push To Talk, Noise Cancelling, ADA Compliance, and a 10” microphone would be “TTU-3DX-L-W-PTT-NC-ADA-10.” Note that the ADA Compliant Option includes a Monitoring and Recording Option so the two options can not be combined.

Specifications, Installation, and Operations
